About This

• Large flow air compressor auto drain valve: zero air loss, prevent clogging, small size, large flow, low installation height, saving space. Air tank drain valve that can automatically discharge sewage.

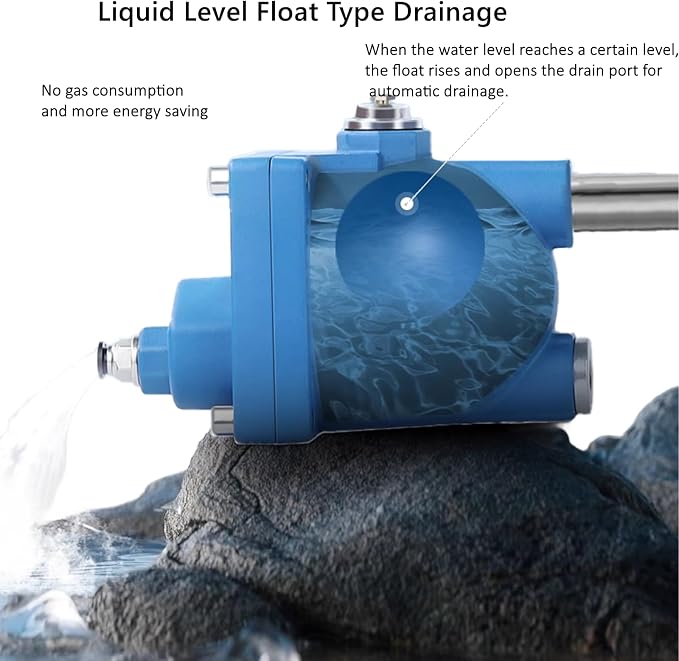

• Efficient drainage: Liquid level induction drainage, through the internal liquid level ball, when the water level reaches a certain height, the valve will automatically open to drain. When the water level is lower than a certain position, the valve will automatically close, achieving only drainage without exhaust.

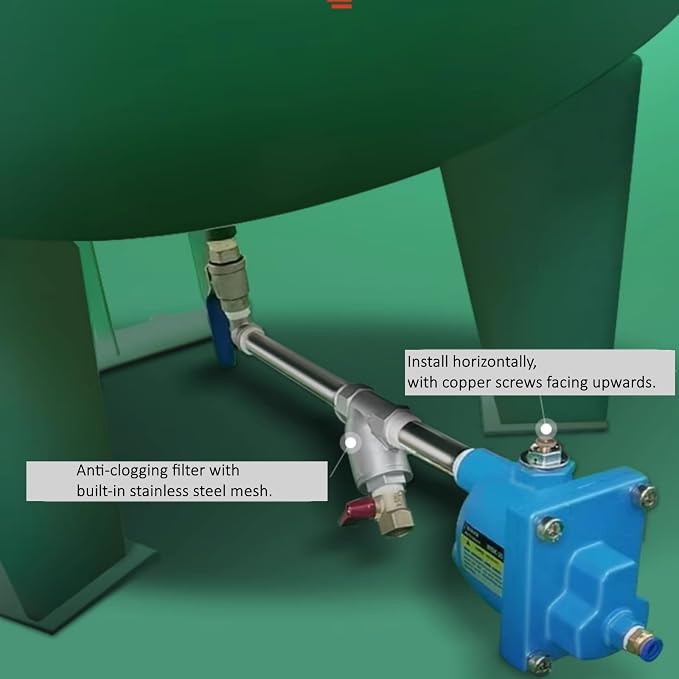

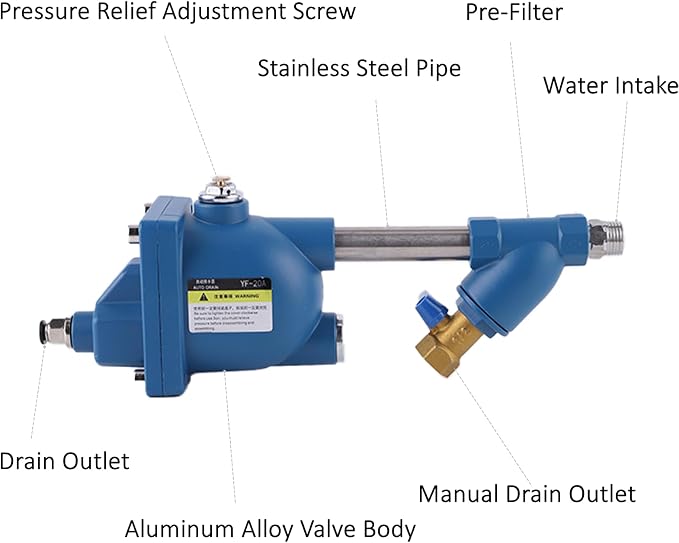

• With pre-filter: Built-in filter with manual drain port to facilitate the discharge of foreign matter and avoid clogging. At the same time, the automatic drain valve also has a manual button for draining, which is convenient for cleaning inside the drain valve.

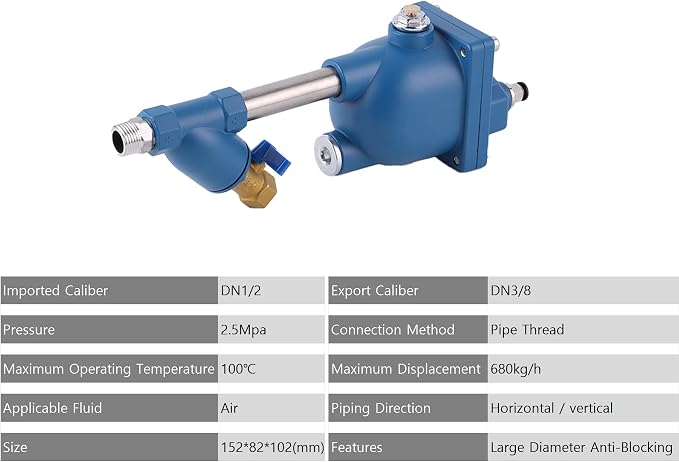

• Detailed parameters: water inlet G1/2, drainage outlet G3/8. The operating pressure is within 0.1-2.5Mpa. Suitable for gas tanks above 1 cubic meter. Allows impurities (such as rust, sand, oil) to filter.

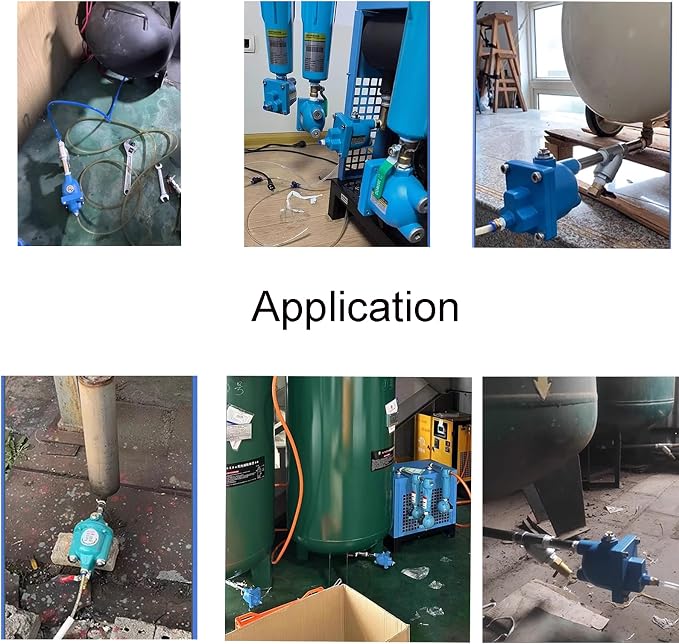

• Various applications: suitable for air compressors, air tanks, filters, cold dryers, small and medium air pumps, compression pipelines and other occasions.

Overview

• Material : Metal
• Brand : LuTangous
• Exterior Finish : Metal
• Inlet Connection Size : 0.25 Inches
• Inlet Connection Type : Compression
• Outlet Connection Type : G Connector
• Maximum Operating Pressure : 2500 Kilopascal
• Number of Ports : 2
• Outlet Connection Size : 0.38 Inches
• Number of Packs : 1
